Shipboard Crane Load Test & Inspection – Fujairah Anchorage

• Fujairah Anchorage, UAE

Precision. Procedure. Performance.

As part of routine marine lifting assurance, comprehensive load testing and detailed inspection were successfully completed onboard at Fujairah Anchorage.

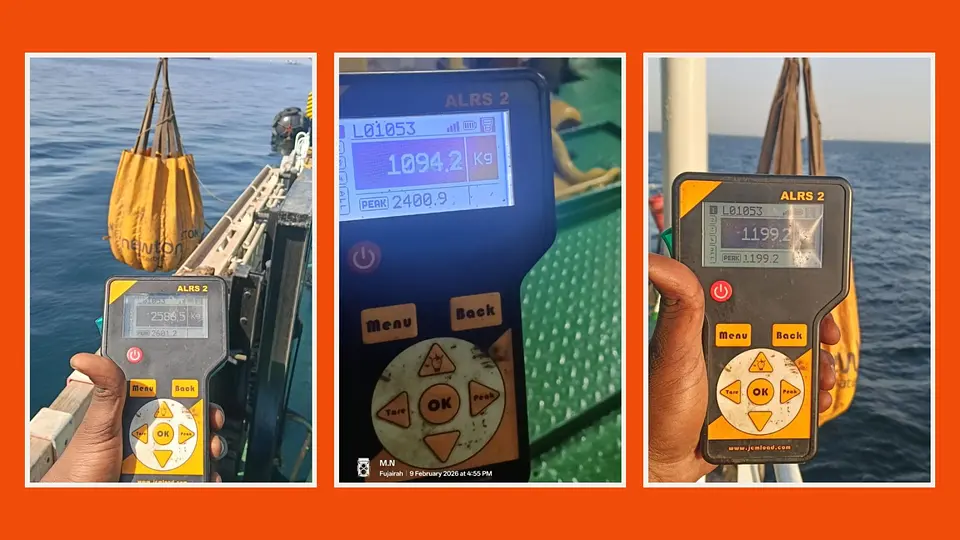

Here’s a snapshot of the testing carried out

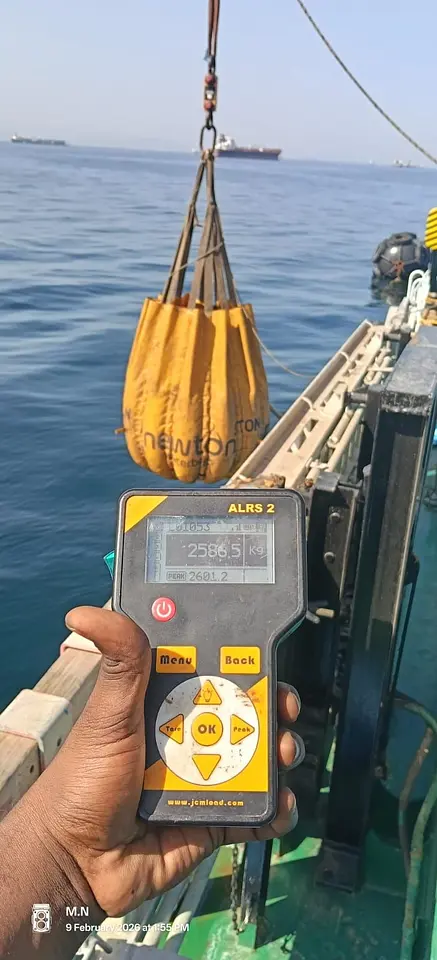

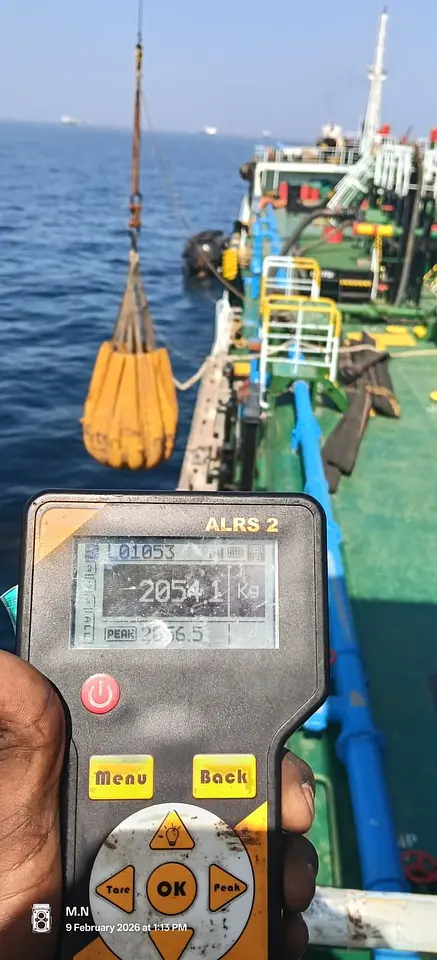

• Midship Crane

SWL: 2.04 Tons

Test Load Applied: 2.55 Tons

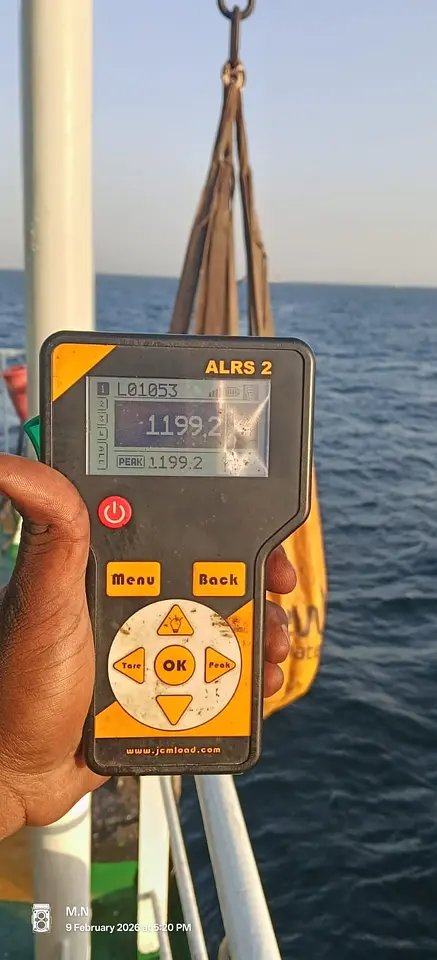

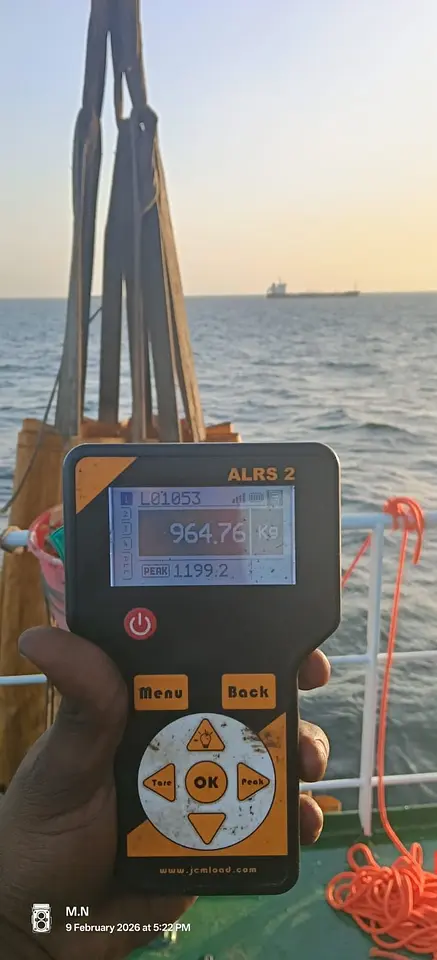

• Provision Crane

SWL: 0.97 Ton

Test Load Applied: 1.21 Tons

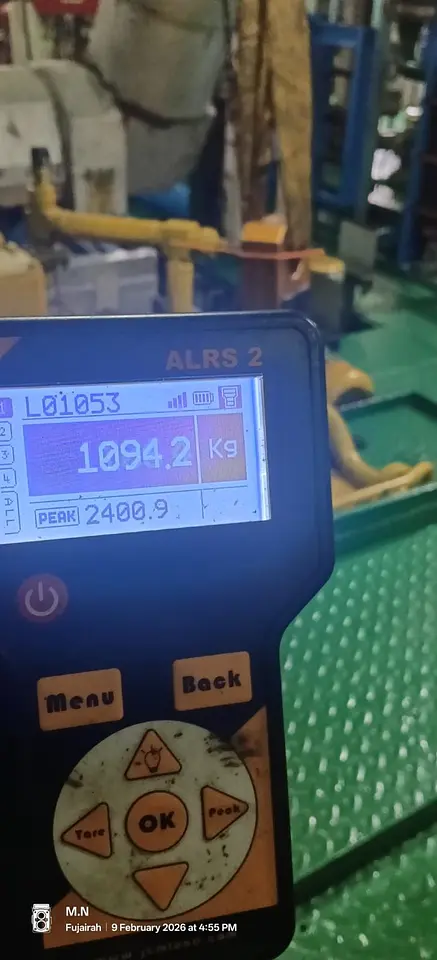

• Engine Room Overhead Crane

SWL: 1 Ton

Test Load Applied: 1.25 Tons (Static Pull Test)

Before Load Application

• Detailed visual inspection
• Structural assessment
• Brake & safety device checks
• Functional operational testing

Testing Focus

• Structural integrity
• Braking performance
• Operational reliability

All inspection and testing procedures were carried out in accordance with Lifting Equipment Engineers Association (LEEA) standards.

Result

All cranes were found satisfactory and are safe for continued operation within their respective SWL limits.

Because at sea, lifting safety isn’t optional — it’s operational discipline.
